No Corrosion Ammonia Pressure Gauge / Round Gas Pressure Gauge 100mm

Name: No Corrosion Ammonia Pressure Gauge Round Gas Pressure Gauge 100mm
Brand: ZOHA
Price: 1 USD

Wholesale No Corrosion Ammonia Pressure Gauge / Round Gas Pressure Gauge 100mm from china suppliers

Brand Name : ZOHA

Model Number : Ammonia pressure gauge

Certification : CE

Place of Origin : China

MOQ : negotiate

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80000 pcs per month

Delivery Time : 3~4 weeks

Packaging Details : 1 pcs per box 100pcs per carton

Name : Ammonia pressure gauge

Dial Diameter : 63mm 100mm

Accuracy Class : 100mm 150mm

Bourdon Tube : Phosphor bronze

Connector : Brass

Pointer : Aluminum black

Contact Now

Ammonia pressure gauge

Applications

The ammonia pressure gauge can be used in measuring the pressure of medium which has no
corrosion function to all of the carbon steel, stainless steel and soldering tin.
Mainly used in measuring the pressure of the liquid or gas of the ammonia which will be
concerned in fertilization manufacture and the refrigeration equipment.

Specifications

Type	YA-100 YA-150
Diameter	100mm 150mm
Measuring Range	- 0.1~0~60MPa (As customers requirements)
Pressure unit	Mpa psi bar kg/cm² etc.
Accuracy class	cl.1.5
Structure	Connector, Bourdon tube, Movement, Indicating device, case
Thread	M20*1.5 G1/2 NPT1/2 (We can accept all kinds of thread from customers)
ENV Temp and Relative Humidity	- 40~70°C ≤90%
Temp affect	ENV Temp deviate from 20±5°C, additional error ≤0.4%/10°C
Mounting type	Bottom/Radial
Weight	YA-100: 0.6kg YA-150: 0.9kg

No Corrosion Ammonia Pressure Gauge / Round Gas Pressure Gauge 100mm

Product Tags:

hydraulic pressure gauge

absolute pressure gauge

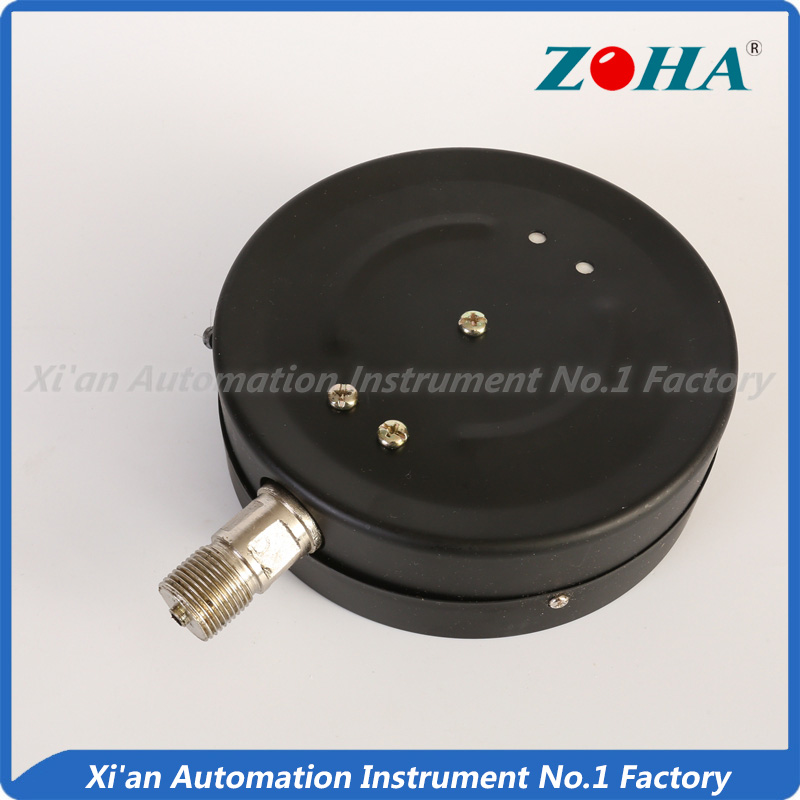

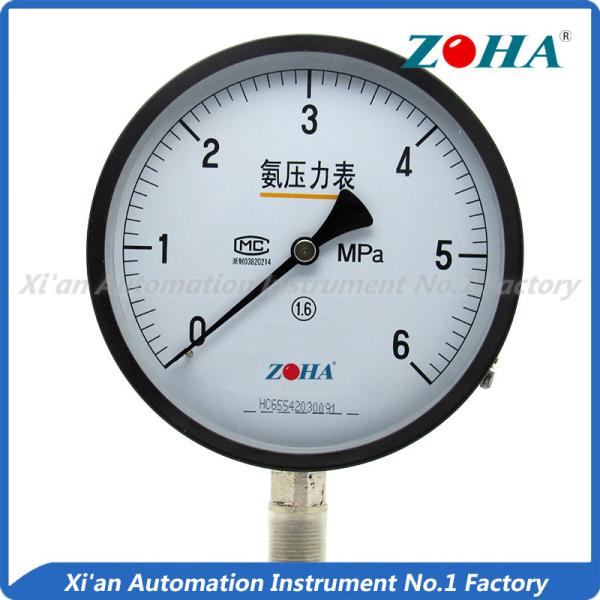

No Corrosion Ammonia Pressure Gauge / Round Gas Pressure Gauge 100mm Images
